A STANDARD EV UTILITY BOX

TO ACCELERATE EXPANSION OF

“LEVEL 2” CHARGING

INFRASTRUCTURE

This device works for all OEM models, adapts to new technology, and safely stores cables on a retractable reel

LOCKABLE CABINET DOOR FOR SECURITY

EXECUTIVE SUMMARY

ACCOMMODATES ALL EV MANUFACTURERS

With leading automakers like Ford and GM committing to zero emission vehicles, EV sales are rising quickly — expanding the need for EV charging infrastructure. The EV Smart Box enables the pre-wiring of Level 2 charging stations in new builds and custom installations. This standard utility box will be CSA/UL approved and available through wholesale/retail electrical supply outlets.

The platform is convenient, cost-effective, and allows for the "plug and play" of different OEM manufacturers. The device features a heavy-duty grounded cabinet that can be secured to a wall, flush mounted in a stud cavity (enabling access from both sides), placed in-ground/curb side, or on a pedestal/pole. The OEM power module (with optional wireless, timer, autopay, and parking meter functionality) simply clicks into the standard docking port. The cable reel is fitted with a universal socket that allows users to plug in the untethered charging cable supplied with their EV. The reel also facilitates easy extraction, rewinding, and safe storage of the EV charging cable. Finally, it minimizes cable damage in busy laneways, electrical shock, and the unsightly view of cables laying on the ground. The design is clean, organized, and the lockable cabinet provides security from weather, vandalism, and theft of electrical power. New Paragraph

HOW IT WORKS

The EV Smart Box enables the pre-wiring of charging infrastructure in new builds and custom installations

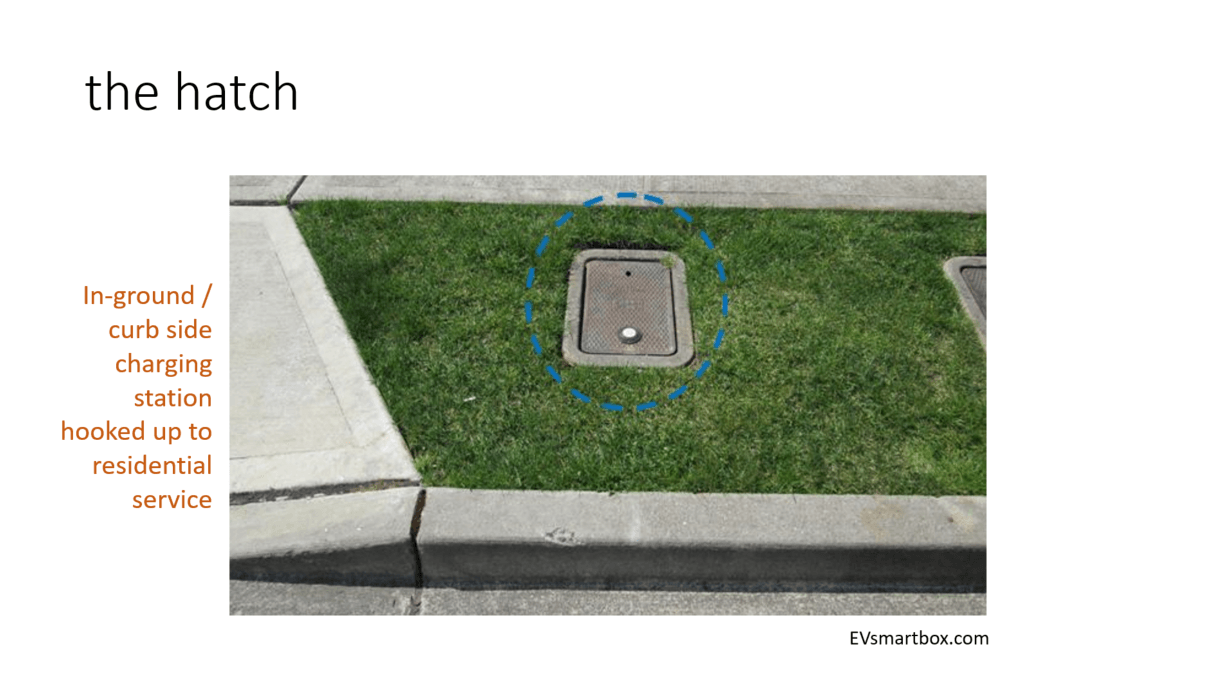

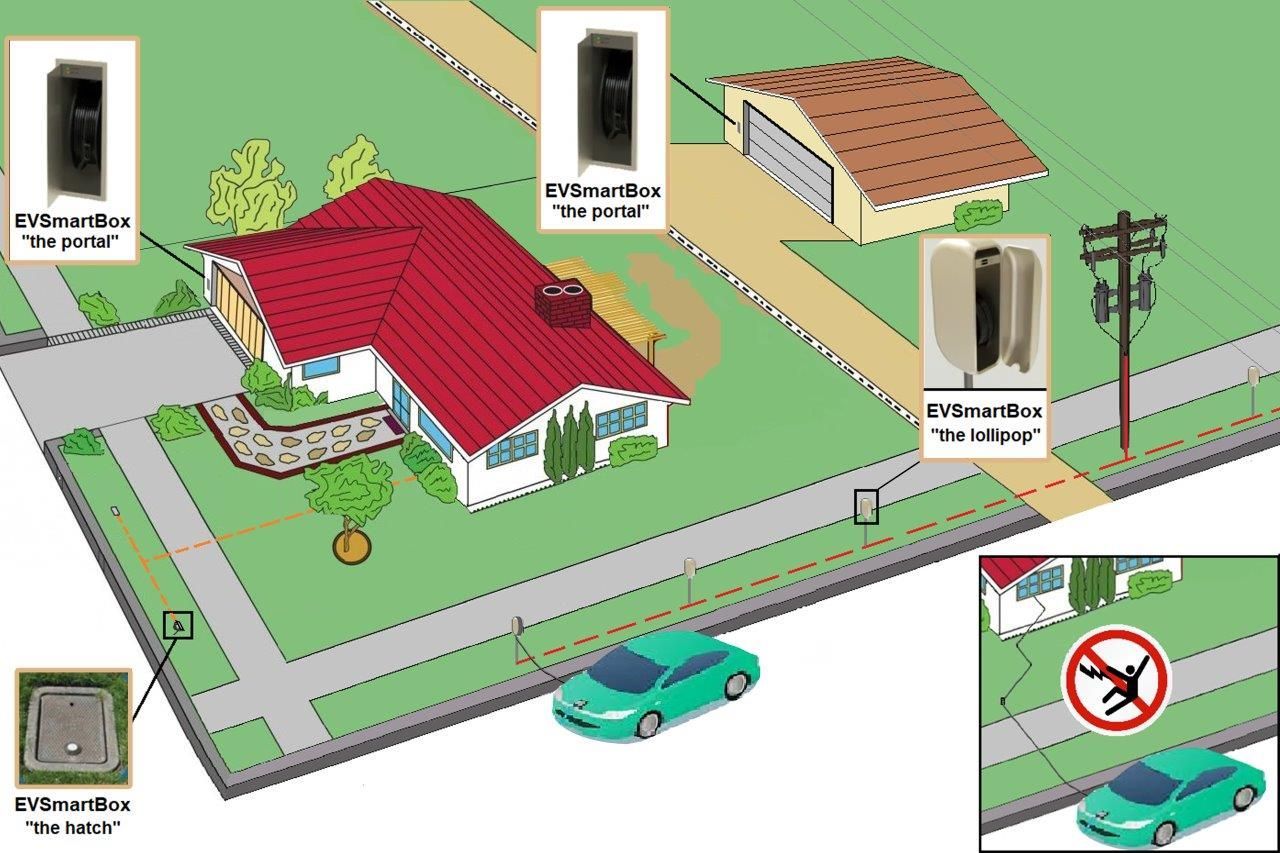

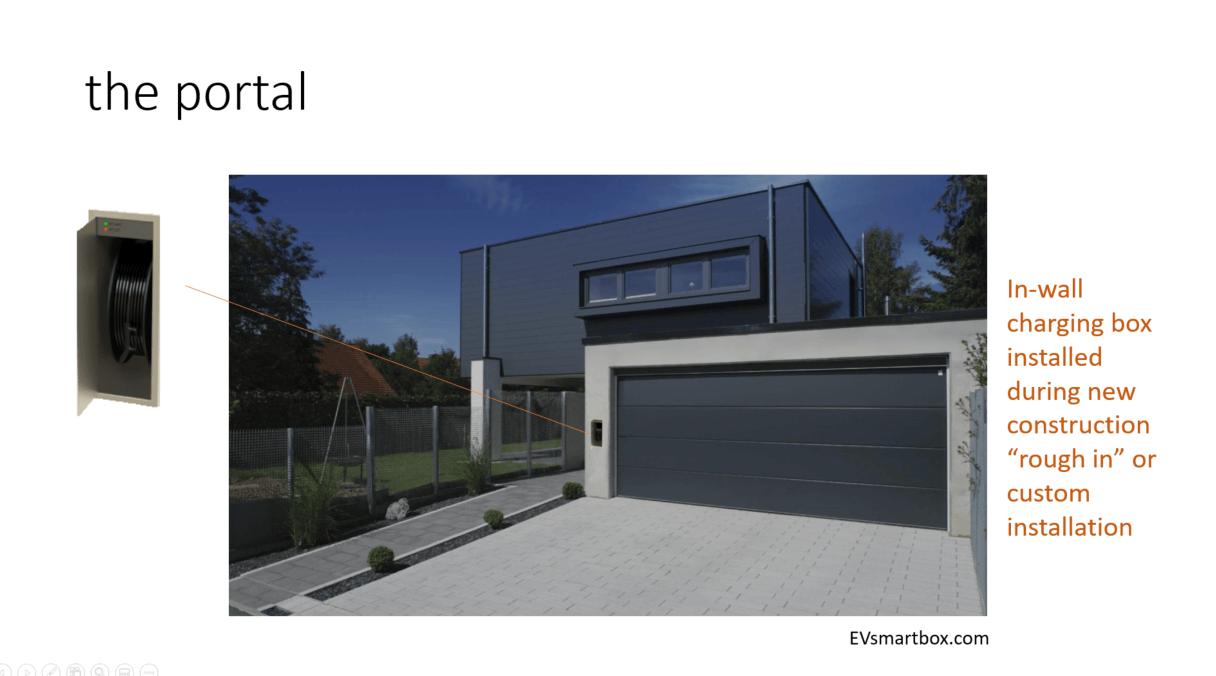

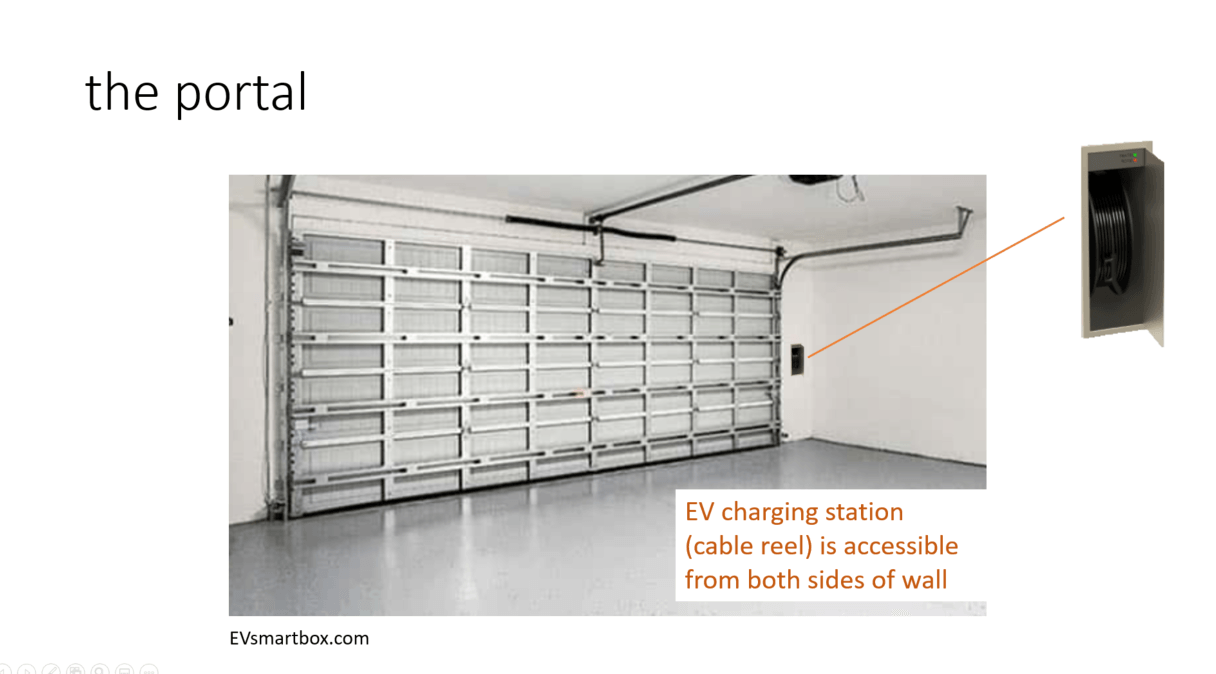

The device features a heavy-duty grounded cabinet that can be secured to a wall, flush-mounted in a stud cavity (enabling access from both sides), placed in-ground/curb side, or on a pedestal/pole

The OEM power module simply clicks into the standard docking port

The cable reel is fitted with a universal socket that allows users to plug in the untethered charging cable supplied with their EV. It also, facilitates easy extraction, rewinding, and safe storage of the EV charging cable

FEATURES

Why People Will Love The EV Smart Box

STANDARDIZED heavy duty, grounded base/cabinet with cable reel can be installed on the exterior/interior of residential, commercial, or industrial projects by contractors during rough-in or post construction

PLUG AND PLAY for all EV charging station manufacturers

MOUNTED directly onto a wall or flush mounted (i.e. framed into the studs)

LOCKABLE cabinet door for security (i.e. theft of electrical power and EV equipment)

EASY cable extraction, rewinding, and safe storage

APPEARANCE is clean and organized. No unsightly cables hanging from a hook or getting in the way

SAFETY concerns from damaged cables (including electrical shock) are minimized in busy laneways, wet environments, and public access

UNIVERSAL electrical socket in the reel can accommodate all untethered EV cables

BASE of cabinet contains a standard electrical box, circuit breaker, and universal electrical sockets that accommodates all EV charging station manufacturers

FUTURE upgrades in EV charging technology can be accommodated without changing out the cabinet

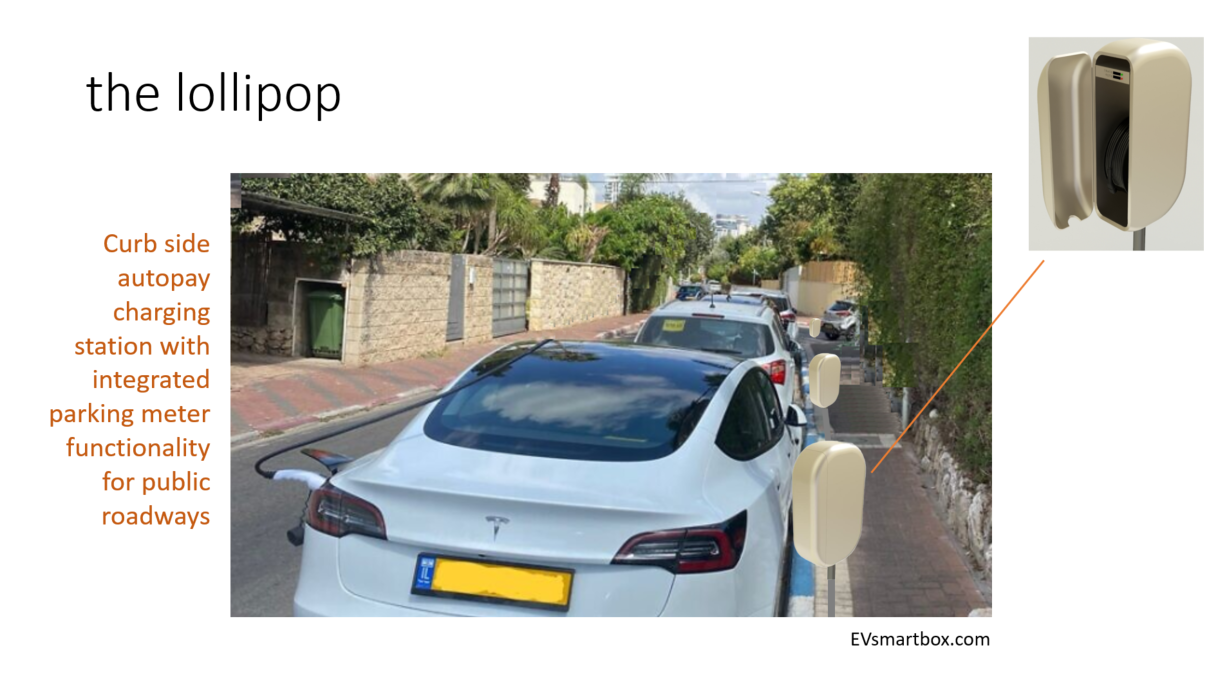

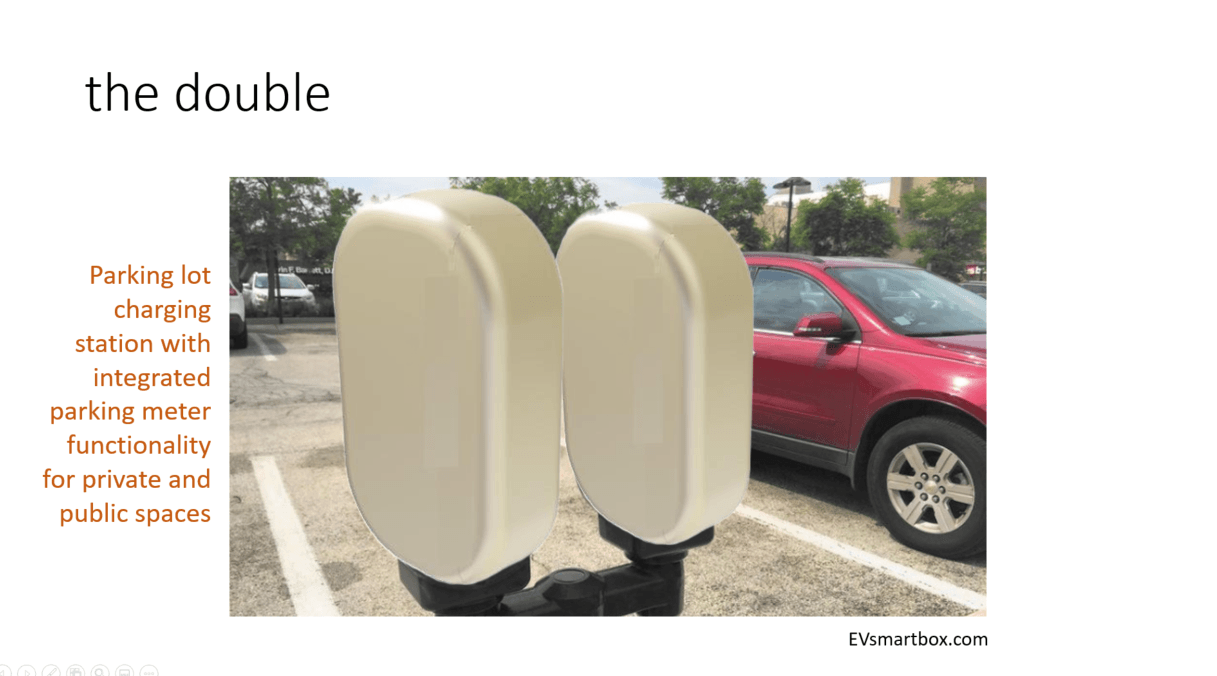

OPTIONAL power module capabilities (i.e. wireless, timer, autopay, and parking meter functionality)
